Tech Note 1021 – Accessing the Graphic User Interface (GUI)

Scout 85.2 and above

  • Description:

This note is to assist users in accessing the Graphic User Interface (GUI). Note that this feature is only available in 85.2 firmware and above.

  • Implementation:
    1. Setting Controller IP Settings

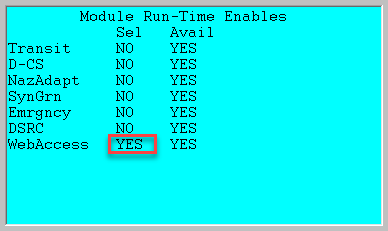

The first step is to go to MM-8-4 and select “Run Options.” On the right side all modules licensed to the user will show “Yes” if available. Scroll down until you see “WebAccess.” It should show that it is an available module. Under the Select (Sel) column, change the “WebAccess” status from “No” to “Yes.”

Note: After enabling a license, the controller will require a reboot. Once the status of any module is changed wait roughly 18 seconds then reboot the controller.

A screenshot of a computer Description automatically generated A screen shot of a computer Description automatically generated



Once the license has been enabled go to MM-6-5 and set the IP information for the controller.

A screen shot of a computer Description automatically generated



If the controller and the PC are within the same network the user should be able to access the controller at this point.



  1. Accessing Through Web Browser



If connected to the same network as the controller, open any web browser and input the IP address of the desired device.

 Once connected to the controller, the user can then access the GUI enabling them to check real-time status and apply database changes.

A black and white image of a person Description automatically generated

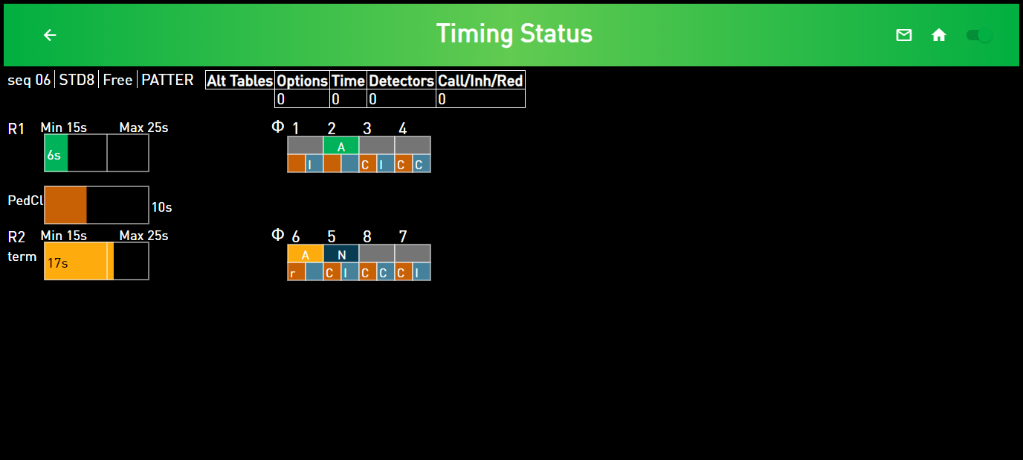

 Status: MM-7-1

A screenshot of a computer Description automatically generated

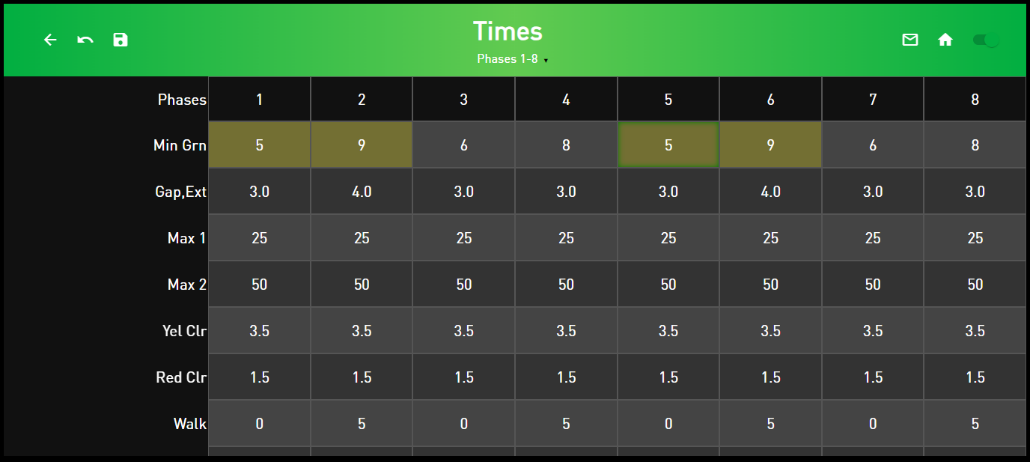

 Phase Timing: MM-1-1-1

A screenshot of a computer Description automatically generated



  1. Connecting Directly to Controllers

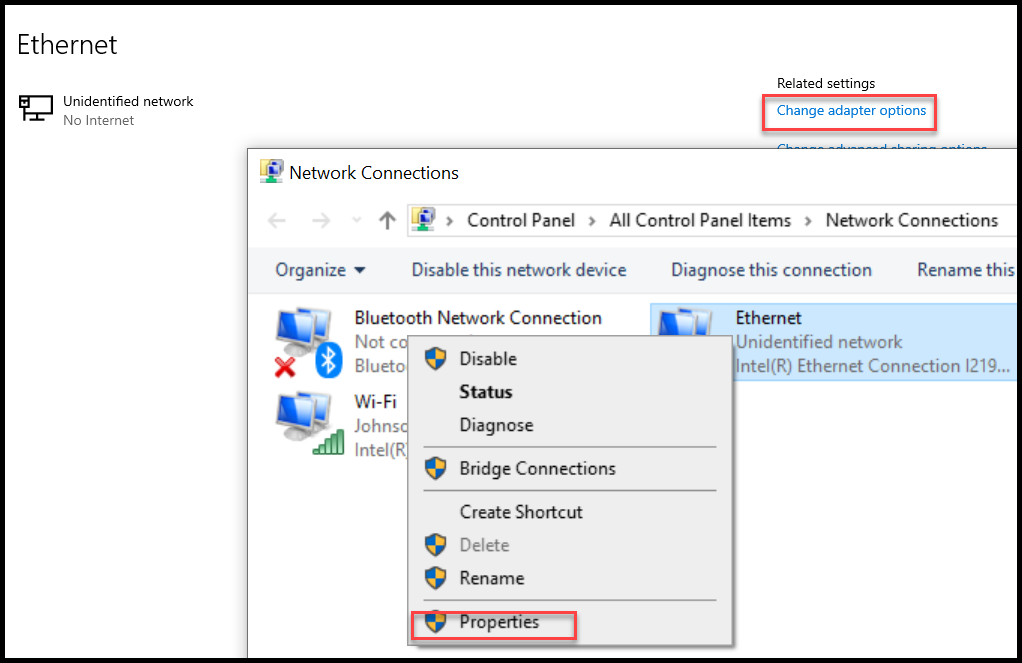

Connect an ethernet from your PC to the controller. Open your ethernet settings on your PC and select “change adaptor options.” Right click the unidentified ethernet connection and select “properties.”



A computer screen shot of a computer Description automatically generated









Right click “Internet Protocol Version 4 (TCP/IPv4)” and set the PC ethernet port to the same IP scheme.

Note: For best results change the fourth octet within 10 digits of the controller IP.

THE PC AND CONTROLLER CANNOT HAVE MATCHING IP ADDRESSES

A screenshot of a computer Description automatically generated A screenshot of a computer Description automatically generated

After this step, access through the web browser as discussed in section 2.

  1. Troubleshooting Connection Issues

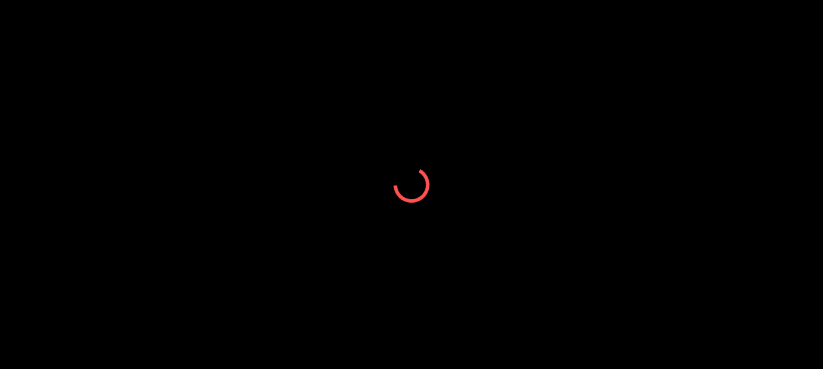

When attempting to connect, it is possible that the user will see a grayed-out screen followed by the loading circle after navigation.

A black and white image of a person Description automatically generated A red circle in the dark with Marfa lights in the background Description automatically generated

This means there is a path but connection services are being blocked. There are two main areas to check:

  • Make sure the “Webaccess” has been enabled under MM-8-4-2.
  • Check to see if any other user is logged into that specific controller. Only one user can access the GUI at any given time.
  • Verify that TCP ports 8080 and 4444 are allowed throughout any network path between the browser machine and the controller. Port 8080 is used from the browser to load the web interface. Port 4444 is used internally by the web interface application to get real-time data from the controller.
